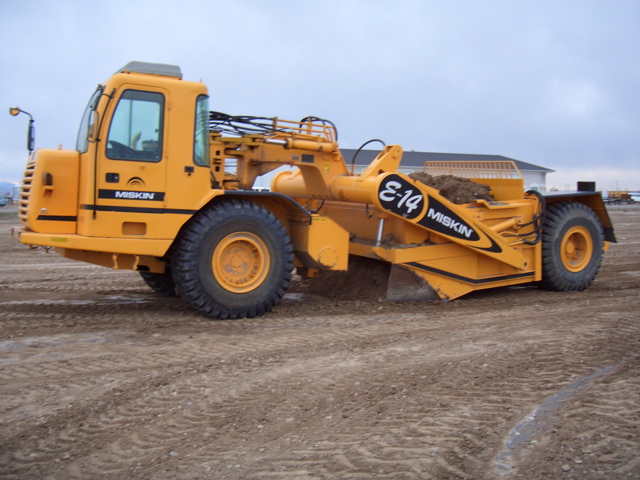

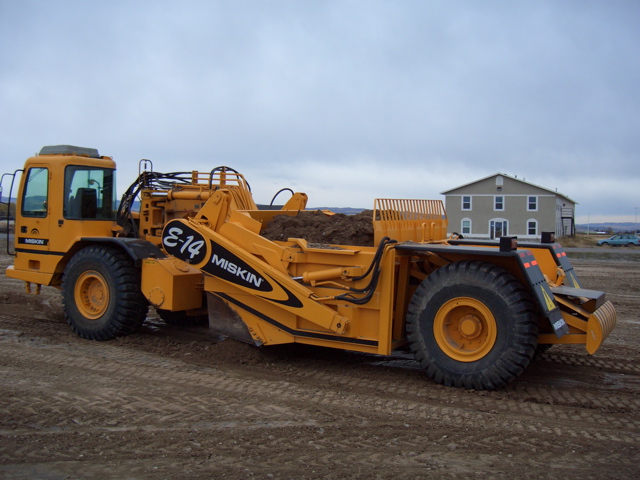

Miskin E-14m MotorScraper

Product Information

The MISKIN E-14m MotorScrapers are "Push-Loadable"

for work in rocks, sand, and tough conditions.

Large apron (gate) opening to allow dirt to move into and out of the scraper easily

"Push-out" Ejector unloads clean even sticky soils, and precision spreads on grade.

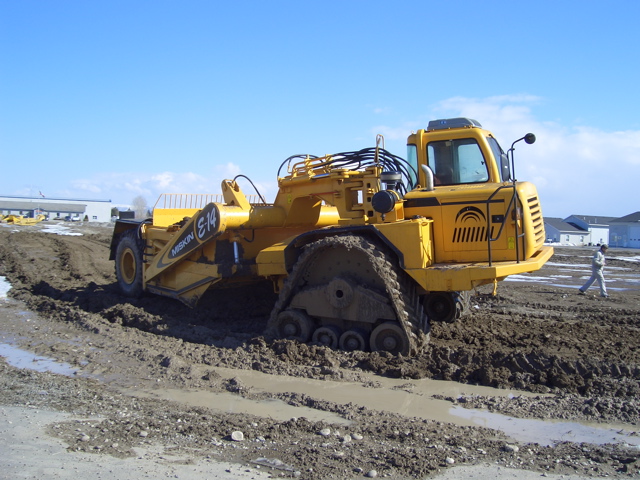

Tracks help floatation in mud, Sand, and other materials

where traction is difficult.


14 yard heaped (10 struck)

Payload Capacity 30,000 lbs

215 hp Cummins diesel engine (tier II compliant)

6 cyl, 5.9 Liter Model QSB5.9-215/2200 (225 peak hp)

4 speed powershift Clark-Hurth (now Dana) 32000 transmission (0-18 mph)

Loading Gear 0-4 mph

34,170 lbs max rim-pull

90 degree turn

23.5-25 tires

Comfortable, Air Conditioned cab

Fast Hydraulics (4.7 seconds eject time)

Eaton Hydraulic Steering system

Blade Clearance 18”

45,000 lbs

Under 12’ wide

11' tall

24.5’ long
